Zebra ZD421 Printheads
Looking for a genuine Zebra ZD421 printhead or replacement? As a trusted Zebra reseller and printer repair specialist, we supply a full range of genuine Zebra ZD421 printhead part numbers for both ZD421D and ZD421T models. Available in 203 dpi and 300 dpi, our printheads ensure reliable performance and full compatibility with your printer. Browse below to find the correct Zebra ZD421 printhead for your device.
Looking for a different Zebra printhead?
Available Zebra ZD421 Printhead Part Numbers
Direct Thermal Gray Models
Part Number
Resolution
Enquiry
203 dpi
P1112640-020
300 dpi
Direct Thermal White Healthcare Models
Part Number
Resolution
Enquiry
P1112640-026
203 dpi
P1112640-027
300 dpi
Thermal Transfer Models
Part Number
Resolution
Enquiry
P1112640-218
203 dpi
P1112640-219
300 dpi
Zebra ZD421 Printhead Replacements
Need a Zebra ZD421 printhead replacement? The genuine Zebra printheads we supply come with a 1 year or 1 million inch warranty.
You do not need to replace them until they fail, common problems caused by ZD421 printhead failure:
Barcodes not scanning
Unreadable text

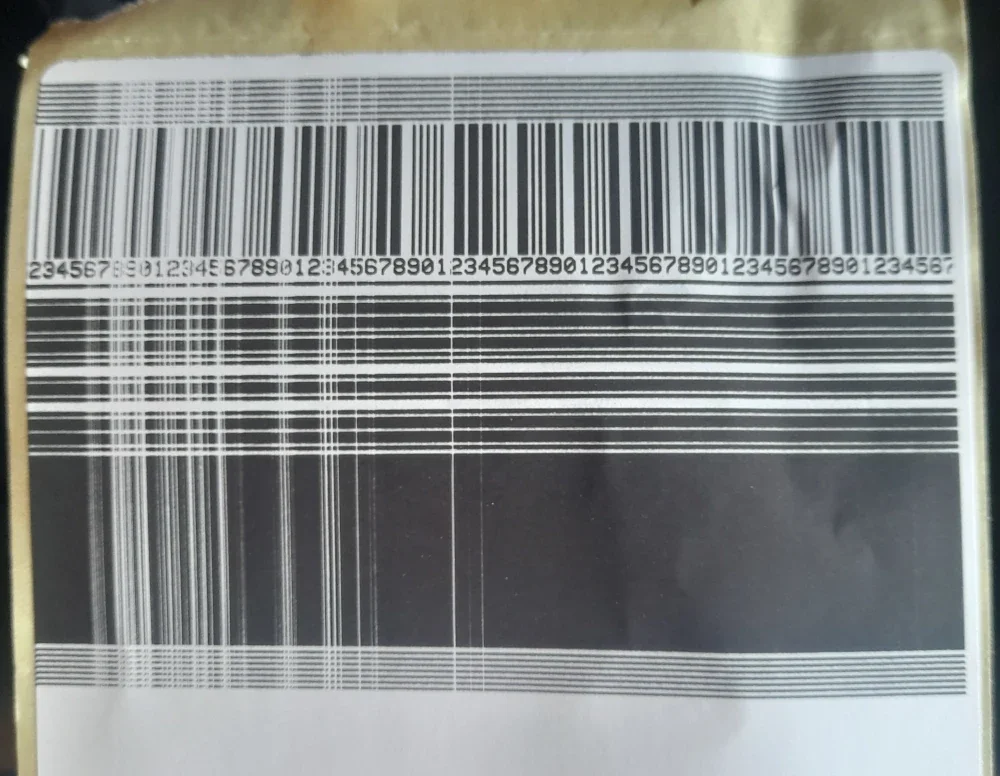

Straight vertical white lines going through the print
Burning too hot, e.g. snapping ribbon consistently at the correct darkness
Choosing the correct Zebra ZD421 printhead
The Zebra ZD421 has different drive systems for different resolutions. When replacing your Zebra ZD421 printhead it is important you replace it with the same DPI as previously installed. The most effective way of finding out what the current DPI is by printing the configuration or viewing it from the printer webpage.

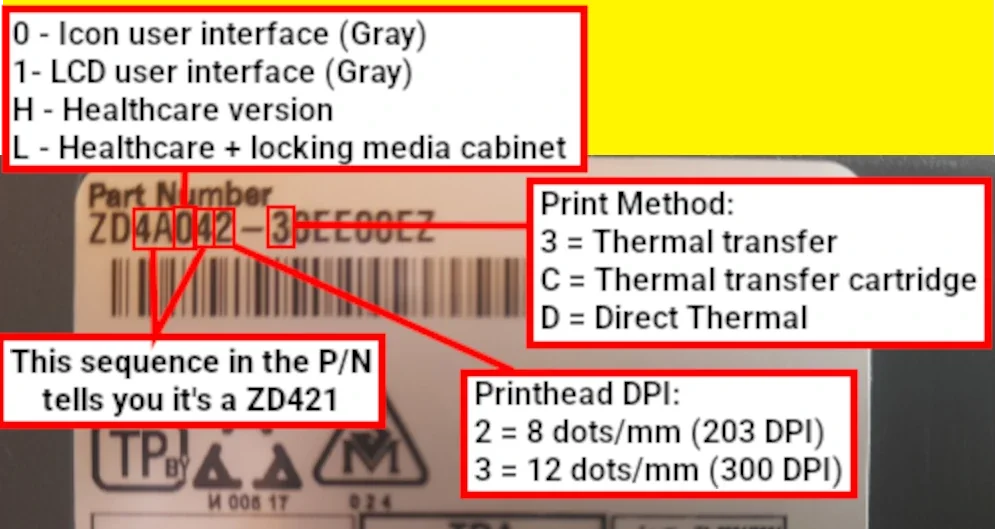

You can use the part number sticker on the bottom to identify the correct replacement you need, see the picture to learn about this. However if your printer has had a DPI upgrade throughout it’s lifecycle this may be incorrect.
Zebra ZD421 Printhead Frequently Asked Questions
How do I know which Zebra ZD421 printhead I need?
200 and 300DPI printers have different drive systems, along with different brackets for healthcare, thermal transfer and direct thermal versions. Use the part number on the bottom of the Zebra ZD421 and compare it against our example above to find the correct part. If you’re still not sure please contact us and we will be happy to help.
Are your ZD421 printheads genuine or compatible?
Our printheads are genuine OEM parts, we do sell compatible for end of service life models where the printheads are no longer manufactured.
When should I replace my ZD421 printhead?
Usually when white lines start appearing through the print, barcodes will no longer scan and bits of text are unreadable or missing completely.
